Private label:Support
Warranty:12 Months
Packing:Natural Box or Color Box
Suits for Pump/Rail Number:
FAQ:
Q1: Are you trading company or manufacturer?
A: We are factory in Rui an City.
Q2: How long is your production time?
A: Normal takes 3-7 days if we have stocks.If no enough stocks,it will takes about 20 days.
Q3: Do you provide samples? is it free or extra?
A: Yes.We offer samples.We charge for sample cost and freight cost.
Q4: What is your terms of payment?
A: Normal T/T payment.
Q5: What is your quality standard?
A: OE quality standard.All valves will test 2 times at least before shipment.Only ship the good
quality.
Q6: Can you produce according to sample or customize product?
A: Yes. We have a professional technical team with pre-sale and after sale service to perform your
request.
Q7: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ; We respect every customer
as our friend and we sincerely do business and make friends with them.
Our Advantage:
Excellent Quality Stable and Reliable
1. stable supply chain.
2. Strong relationship with business partners.
3. 90% of the Chinese market, widely acclaimed.
4. Highly efficient team service.
5. Timely
pre-sales and after-sales service.
Professional Factory Focus on product
details:
1. Selected superior imported materials, mature material supply chain.
2. Strict production management according to IATF-16949.
3. Strict quality inspection, 200% quality inspection rate.
4. Exported to more than 30 countries and regions, trusted by customers.
Quality Warranty:
1 year quality guarantee, all products have been tested 2 times before leaving the factory to ensure
stability.
Feedback:
Please share me video and photos to us for after sales.
We would also like to get your suggestions to
improve our products.
If you have any questions or need a quotation, please feel free to contact us. We will reply to your email
or phone call as soon as possible. We look forward to working with you to create a better future.
1. What Is an Inlet Metering Valve

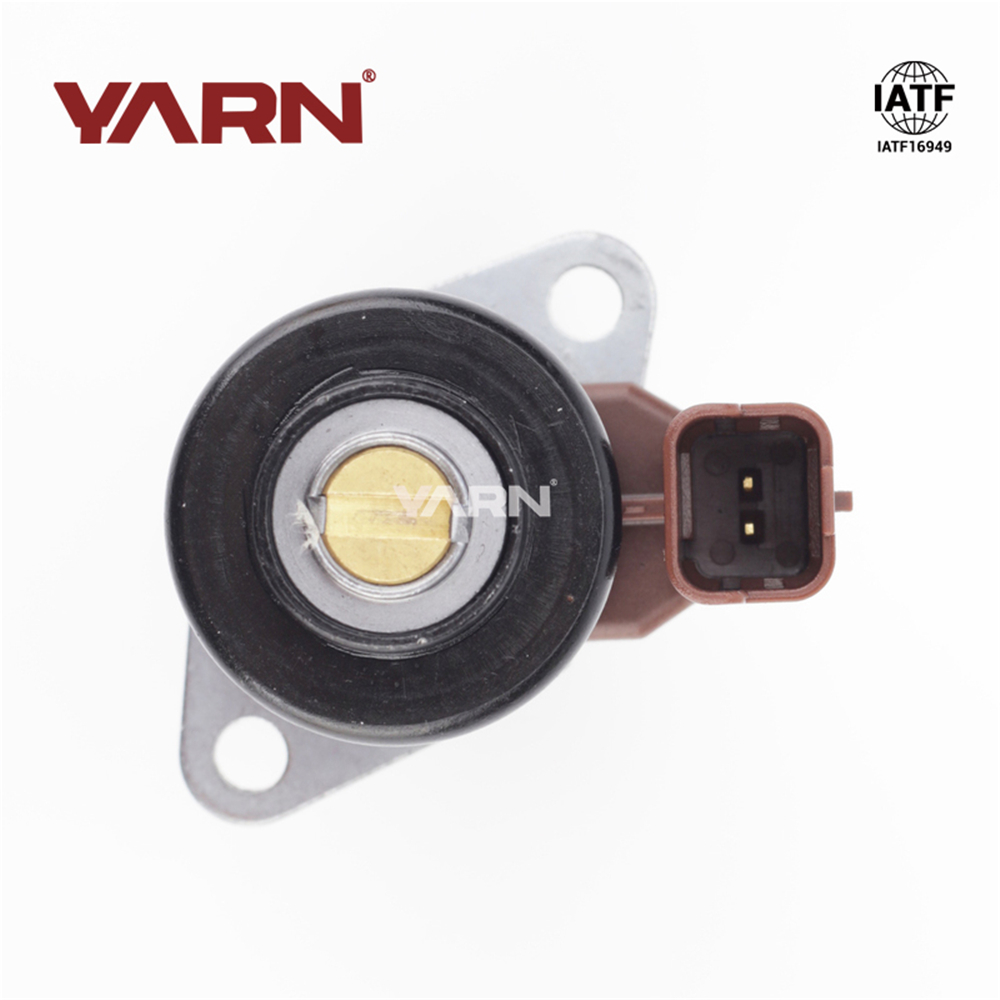

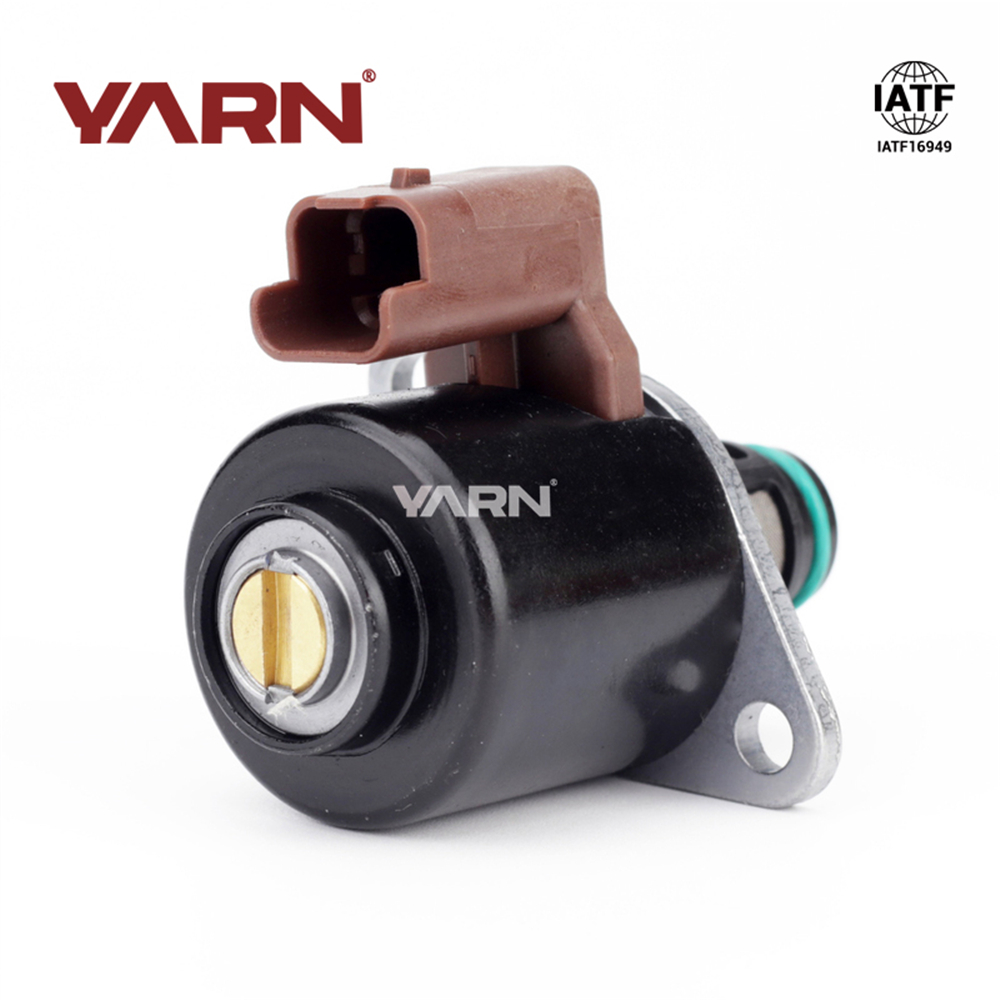

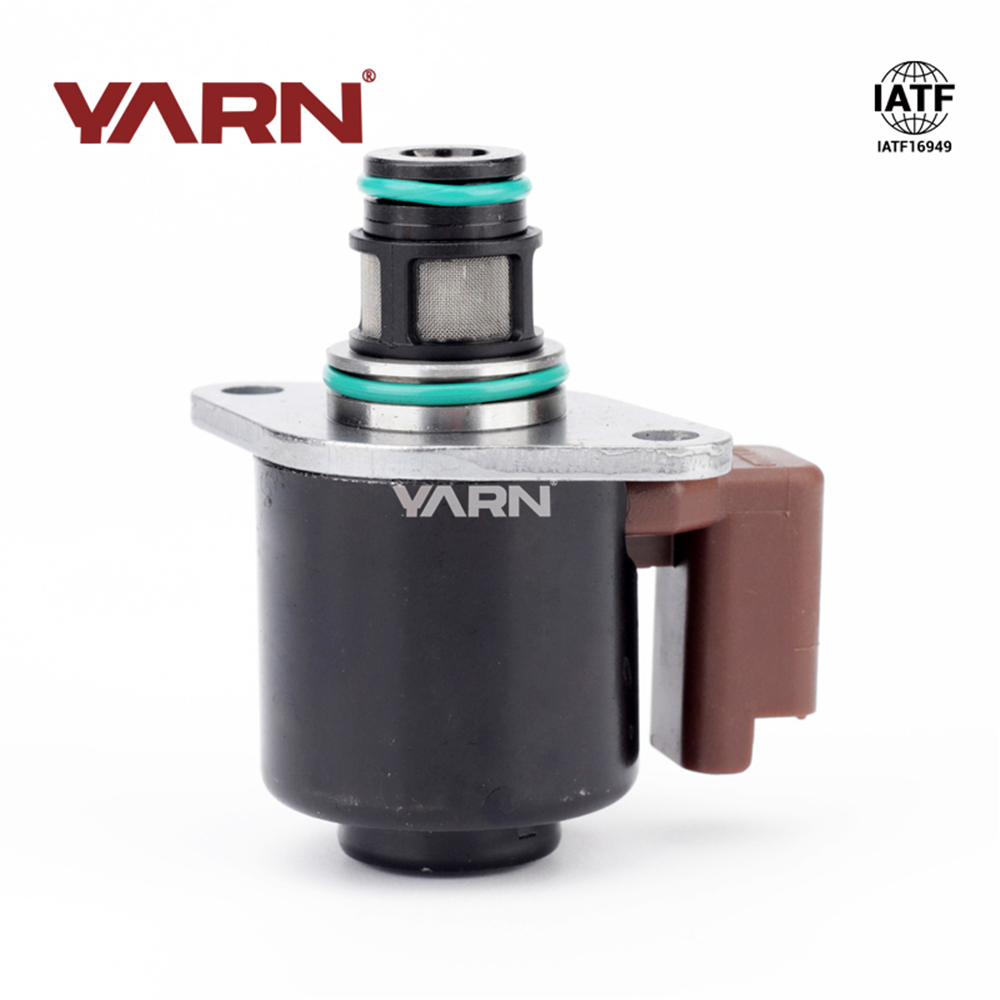

An inlet metering valve is an electronically controlled proportional valve mounted on the inlet side of a high-pressure fuel pump, typically in common rail diesel or gasoline direct injection systems. It regulates the amount of fuel allowed to enter the pump’s compression chamber. The valve consists of a solenoid coil, an armature, a spring, and a variable orifice (poppet or spool). When the engine control unit sends a pulse-width modulated (PWM) signal, the valve partially closes or opens the inlet passage, controlling the fuel volume drawn from the low-pressure circuit. By metering fuel before compression, it directly determines the pump’s output flow and thus the rail pressure. Unlike a pressure relief valve that wastes energy by dumping excess compressed fuel, the inlet metering valve optimizes pumping efficiency. Most modern high-pressure pumps use this component as the primary actuator for rail pressure control, operating at suction-side pressures of 2–10 bar while enabling output pressures exceeding 2,000 bar.
2. Why the Inlet Metering Valve Matters
The inlet metering valve is crucial because it enables precise, energy-efficient control of rail pressure. By admitting only the required fuel mass into the pumping chamber, it eliminates the parasitic loss of compressing and then relieving excess fuel, improving overall engine efficiency by 2–5%. This efficiency gain reduces fuel consumption and lowers fuel temperature, extending the life of pumps and injectors. The valve’s fast response (typically 5–15 ms) allows the engine control unit to maintain stable rail pressure during rapid load changes, directly improving throttle response and reducing smoke and NOx emissions. Furthermore, most inlet metering valves are designed as normally open, meaning that if electrical power fails, the valve stays fully open, allowing enough fuel for limp-home operation rather than sudden engine shutdown. Without a functioning inlet metering valve, the high-pressure pump either delivers uncontrolled maximum flow (risking overpressure damage) or no flow (engine stall), making this valve essential for both performance and safety.
3. Common Product Types by Inlet Metering Valve
Inlet metering valves are classified by actuation principle, hydraulic design, and application. The most common type is the normally open (NO) proportional solenoid valve – with zero current, maximum flow is allowed; increasing PWM duty cycle reduces flow. This provides fail-safe operation. Normally closed (NC) types are used in some specialized systems where fuel cut-off on power loss is desired. By internal mechanism: poppet-type (a conical or spherical element seating against an orifice) offers excellent sealing and is common in smaller engines; spool-type (a sliding spool with metering edges) provides better linearity and higher flow capacity for heavy-duty applications. Some advanced designs incorporate a position sensor (inductive or Hall effect) to enable closed-loop control of the plunger position. By flow rating: low flow (under 30 L/h for passenger cars), medium (30–100 L/h), and high flow (over 100 L/h for trucks). Additionally, two-stage inlet metering valves use a small pilot solenoid to control a larger main stage, reducing electrical power consumption while maintaining high flow capability.
4. Key Advantages of Inlet Metering Valve
Key advantages include superior energy efficiency, precise pressure control, reduced thermal load, and diagnostic capability. By metering fuel before compression, the valve avoids wasteful over-compression, cutting pumping losses and improving fuel economy by 1–3% in real driving. Lower pumping work means less heat is transferred to the fuel, reducing viscosity loss and wear on high-pressure components. The valve’s proportional control allows the engine control unit to adjust rail pressure with minimal overshoot, enabling smoother pilot injection events that reduce combustion noise and particulate emissions. Fast response times support quick pressure reduction during deceleration, improving fuel cut-off and reducing after-treatment loading. From a reliability standpoint, the normally open fail-safe design ensures the engine can still run (though with limited performance) if electrical or control signals fail. The compact, pump-integrated design eliminates external fuel return lines, simplifying engine layouts and reducing leak paths. Additionally, the valve’s current and response characteristics can be monitored for predictive maintenance, detecting sticking or clogging before failure occurs.
