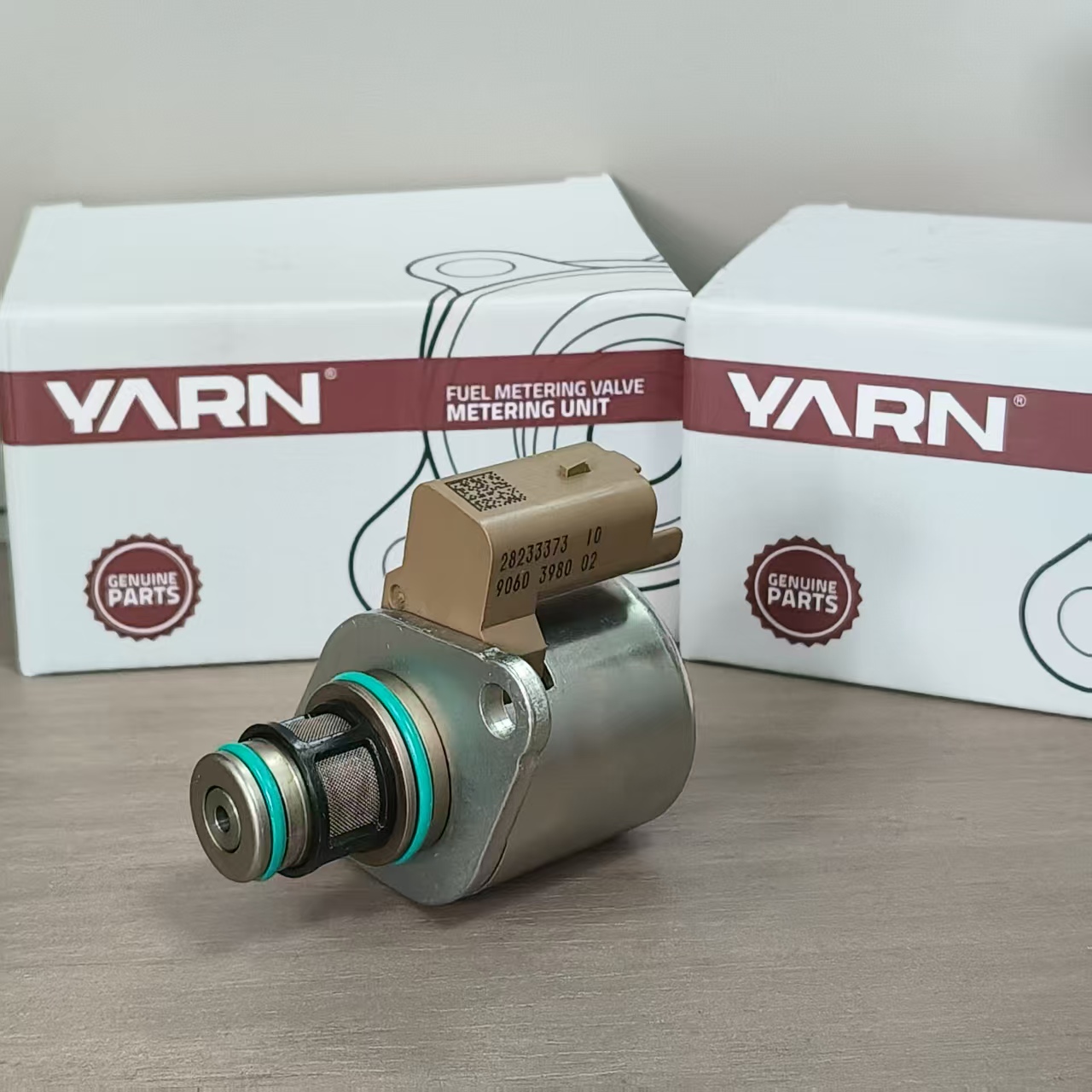

The Inlet Metering Valve (IMV), also known as a Fuel Metering Valve, Suction Control Valve (SCV), or Fuel Control Actuator depending on the manufacturer, is an important component in modern common rail diesel fuel systems.
The IMV is usually mounted on the high-pressure fuel pump and is responsible for controlling the amount of fuel entering the pump. By regulating fuel flow, the valve helps maintain the correct fuel rail pressure required by the engine control unit (ECU).
Unlike older mechanical fuel systems, modern diesel engines require precise fuel management. Even a small variation in fuel pressure can affect engine performance, fuel economy, and emissions. Therefore, the IMV plays a critical role in ensuring efficient engine operation.
The Engine Control Unit (ECU) continuously monitors engine operating conditions such as:
Engine speed
Engine load
Accelerator pedal position
Fuel rail pressure
Engine temperature
Based on these parameters, the ECU sends signals to the IMV.
The IMV then adjusts the amount of fuel entering the high-pressure pump.
When more fuel is needed, the valve opens wider.
When less fuel is required, the valve restricts fuel flow.
This process allows the fuel system to maintain stable rail pressure while minimizing unnecessary fuel circulation and energy loss.
✔ Control fuel supply to the high-pressure pump
✔ Maintain stable fuel rail pressure
✔ Improve fuel economy
✔ Reduce exhaust emissions
✔ Enhance engine performance
✔ Protect fuel system components
A defective IMV can cause a variety of engine performance issues.
One of the most common signs is hard starting, especially when the engine is cold.
The fuel pressure may not reach the required level for proper injection.
An unstable IMV may cause sudden engine shutdowns due to fluctuating fuel pressure.
The engine may idle unevenly because the fuel delivery is inconsistent.
Insufficient fuel supply can result in poor acceleration and reduced engine performance.
A malfunctioning valve may cause the engine to use more fuel than necessary.
The ECU may detect abnormal fuel pressure values and trigger warning codes.
Common diagnostic trouble codes include:
P0087
P0088
P0093
P1211
P0251
Several factors can lead to IMV failure.
Dirty fuel is one of the leading causes of valve wear and sticking.
After years of operation, internal components may become worn.
Damaged wiring or coil failure can prevent proper valve operation.
Delayed fuel filter replacement may allow contaminants to enter the fuel system.
Before replacing the valve, proper diagnosis is recommended.
Check for:
Damaged connectors
Corrosion
Fuel leakage
Physical damage
Use a diagnostic scanner to monitor:
Fuel rail pressure
IMV command signal
Error codes
Measure the electrical resistance according to manufacturer specifications.
Compare actual fuel rail pressure with target pressure values.
Significant deviations may indicate IMV malfunction.
Replacement is recommended when:
Fuel pressure remains unstable
Fault codes repeatedly return
Starting problems persist
The valve fails electrical testing
Internal wear is confirmed
Using a high-quality replacement valve is essential to restore fuel system performance.
YARN specializes in manufacturing fuel pressure control valves and rail pressure sensors for the global aftermarket.
✓ More than 10 years of manufacturing experience
✓ IATF 16949 certified production system
✓ 200% testing before shipment
✓ Over 1,000 models available
✓ Coverage for Bosch, Denso, Delphi and VDO applications
✓ Private Label support
✓ Stable quality and warranty service
Every YARN IMV is manufactured under strict quality control procedures to ensure reliable performance and long service life.
Whether you are a diesel parts distributor, importer, wholesaler, or aftermarket brand, YARN can provide high-quality Inlet Metering Valves tailored to your market needs.
With extensive experience in fuel system components and strong OEM capabilities, we help customers build competitive product lines with dependable quality.
Contact YARN today to learn more about our IMV, Fuel Pressure Control Valve, and Rail Pressure Sensor solutions.
